Have you ever wondered what goes on in the background to ensure that vacuum chambers function properly under challenging circumstances? In a vacuum chamber post-processing, cleaning, and degreasing are important but sometimes overlooked operations.
Post-processing is essential to maintaining the longevity and best possible performance of these high-precision devices in the complex realm of vacuum chamber technology. But, do you wonder why is a dust flake or an oil droplet significant in post-processing? How might inadequate maintenance cause expensive malfunctions or subpar outcomes?
In this blog, we’ll explore the fundamental methods and recommended procedures for efficient cleaning and degreasing, including solvent solutions and ultrasonic baths. Learn why these procedures are essential to preserving the integrity of your vacuum chambers and how mastering them may save you hassles, money, and time. Are you eager to take maintenance of your vacuum chamber to the next level? Of course yes! Now let’s get going.

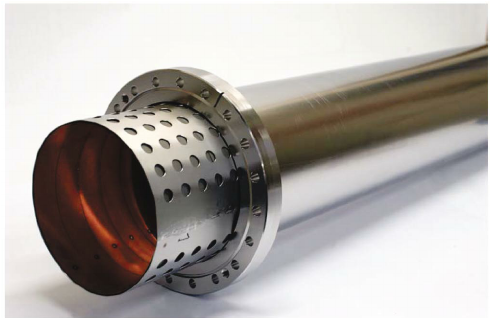

Vacuum Chamber 316 LN Stainless Steel Liner
1. Understanding Contaminants in Vacuum Chambers
Vacuum chamber contaminants can cause a variety of problems, such as decreased vacuum levels, increased outgassing, and even harm to delicate equipment. Understanding the types of pollutants, their origins, and the potential consequences they may have on the system is essential for managing and mitigating these problems. There are two types of contaminants: organic, and inorganic.
Contaminant Types:
Organic pollutants:
The oils, greases, and lubricants that adhere to surfaces during production or handling are considered organic pollutants. Furthermore, certain vacuum pumps may contribute to organic contamination, particularly those that use oil as their operating fluid. Due to their tendency for outgassing, which is the discharge of gases into the chamber environment in the presence of a vacuum, these materials provide a serious risk. In addition to lowering the quality of the vacuum, outgassing introduces vapors that could interact with other parts of the chamber or the activities going on, creating more difficulties.
Inorganic Pollutants:
Vacuum chambers can be exposed to inorganic pollutants from a variety of sources, including dust, metal residues, and oxides. The abrasive nature of these pollutants may cause bodily harm or disrupt the vacuum’s stability and functionality. Because they can physically impede or harm sensitive surfaces, coatings, and chamber components, inorganic pollutants are especially hazardous.
Contamination Sources:
Vacuum chambers are exposed to contaminants through a variety of processes, including handling, manufacturing, and environmental exposure.
Production Procedures:
Machining, welding, and handling are some of the industrial processes that frequently give rise to contaminants. The surfaces and components of the chamber may become contaminated by a range of substances introduced by these processes, including metal shavings and residual oil.
Pollution from the Environment:
Dust, moisture, and airborne particles can expose vacuum chambers to pollution from the environment even after they are manufactured. An increase in contaminants that can disturb vacuum conditions can be brought about by improper handling or storage. Furthermore, improper cleaning techniques used after production may leave behind residues of contaminants that subsequently outgas or migrate within the chamber.
The Implications of Contamination
Vacuum chamber contaminants can have several negative impacts.
Effect on Vacuum Efficiency: Vapours from contaminants, particularly those that outgas, can enter the chamber lower the vacuum, and cause pressure swings. Thin-film deposition, electron microscopy, and other precision-dependent applications are among the processes that suffer from this since they demand a high degree of vacuum stability. As a result, the vacuum environment is compromised, losing stability and suitability for precise processes or tests. There is a chance that the vacuum quality will deteriorate to the point where production processes or experiment repeatability are hampered.
Harm to Delicate Apparatus and Research: Pollutants can tamper with delicate apparatus, including optics, sensors, and samples kept inside the chamber. Metal residues have the potential to result in electrical shorts or damage to components, whilst oil-based organic films can impede optical routes and affect the precision and dependability of experimental outcomes. The findings of experiments may be harmed by this influence, which can also result in expensive fixes and upkeep disruptions.
Vacuum Chamber for DLC Foil Production
2: Cleaning and Degreasing Processes
Cleaning and degreasing are two essential phases in this preservation; while they have different functions, they frequently complement one another to keep the chambers free of undesirable materials.
Degreasing and Cleaning
Cleaning and degreasing are two different but interconnected procedures that are used to prepare the surfaces of vacuum chambers.
- The main goal of cleaning is to get rid of particulate matter, including dust, metal traces, and other solid pollutants. This procedure focuses on visible particles and those that may not be visible at first but can alter the vacuum environment.
- In contrast, the purpose of degreasing is to remove organic pollutants such as oils, greases, and lubricants. Because these materials have the potential to induce outgassing, which releases vapors that deteriorate vacuum conditions, they are especially problematic.
Mechanical Cleaning:
Mechanical cleaning uses physical techniques to remove impurities from surfaces. Typical techniques for mechanical cleaning comprise:
Cleaning with Brushes:
To remove any loose particles and residues, use brushes with the proper bristle stiffness. Although it might be difficult to access tight spaces or delicate places, it is an efficient method of removing and moving heavier waste.
Wiping:
This technique cleans contaminant-filled cloths or wipes off easily accessible surfaces. Though it might not completely clean delicate components or textured surfaces, wiping might be useful for routine maintenance.
Abrasive Blasting:
Sand, glass beads, or dry ice are examples of abrasive particles that can be sprayed at high pressure to remove impurities from surfaces using an abrasive blasting process. Abrasive blasting works incredibly well to thoroughly clean large surfaces and difficult residues. However, if done carelessly, it may release new particles that pose the risk of inflicting surface damage, particularly on softer materials.
Benefits and Drawbacks of Mechanical Cleaning
Advantages: Simple application, effective in getting rid of big particles, and no need for handling chemicals.
Cons: Limited efficacy on greasy residues, risk of surface damage, and challenges in accessing intricate geometries.
Chemical Cleaning:
To dissolve and remove impurities from surfaces, chemical cleaning employs a variety of compounds. Because it can dissolve oils and greases that mechanical cleaning might miss, this approach works especially well for degreasing. Typical chemical cleansers that are used are:
Solvents: To dissolve organic pollutants, organic solvents such as acetone, ethanol, or isopropyl alcohol are utilized. They work well to remove grease, but because they are flammable and pose health hazards, they must be handled and ventilated properly.
Detergents: Compared to organic solvents, water-based detergents are frequently less dangerous and can be used to clean less difficult residues. To avoid residue buildup, a thorough washing is usually performed after them.
Acidic or Alkaline Solutions: These can be used to dissolve scale or oxides for a more thorough cleaning. To prevent harm to the chamber components and to guarantee full neutralization after cleaning, these must be handled carefully.
Safety Considerations and Appropriate Chemical Handling:
There are important factors to think about because chemical cleaning involves potentially hazardous materials, and strict safety procedures are necessary.
- Ventilation: To avoid breathing in hazardous fumes, it is imperative to have enough ventilation when utilizing volatile solvents.
- Proper personal protective equipment (PPE): Wearing the proper personal protective equipment (PPE), such as gloves, goggles, and protective clothes, can help operators avoid coming into contact with chemicals on their skin or eyes.
- Proper Disposal: Environmental rules must be followed while disposing of chemicals used in cleaning, as incorrect disposal can result in environmental contamination and legal ramifications.
Benefits and Drawbacks of Chemical Cleaning
Pros: Extremely efficient at reaching places that are hard to reach and eliminating oils, greases, and residues that mechanical procedures are unable to handle.
Cons: Needs to be handled and disposed of carefully; presents risks to human health and the environment; and, if improperly managed, may cause corrosion or material degradation.
Degreasing Techniques:
The kind of impurities, the materials used, and the ambient factors all influence the degreasing methods that are used. We examine various efficient techniques for degreasing here, such as ultrasonic cleaning, plasma cleaning, aqueous degreasing, and solvent degreasing.
Solvents Degreasing:
To dissolve and get rid of oils, greases, and other organic residues from surfaces, a process known as solvent degreasing is employed. Because of how well this procedure works to dissolve tenacious pollutants that are difficult to remove mechanically, it is an often employed technique.
Precautions: Since solvent degreasing entails working with volatile and perhaps dangerous chemicals, workers must wear the proper personal protective equipment (PPE), such as masks, goggles, and gloves. Solvents must be handled carefully and disposed of appropriately to reduce their negative effects on the environment and health hazards.
Water-Based Degreasing
To remove oils and greases, aqueous degreasing uses water-based solutions with detergents and surfactants. This approach works well for a variety of pollutants and is a more eco-friendly substitute for solvent degreasing.
Benefits Compared to Solvent Degreasing
- Environmental Impact: There is a lower chance of hazardous emissions and problems with disposing of chemical waste when using aqueous solutions.
- Safety: Water-based degreasing improves worker safety by lowering exposure to combustible and dangerous chemicals.
- Compatibility: There is less chance of harming delicate components when using aqueous solutions on a broader spectrum of materials, such as metals and some polymers.
Ultrasonic Cleaning:
High-frequency sound waves are used in ultrasonic cleaning to stir up a cleaning solution and produce tiny cavitation bubbles that burst and lift impurities off surfaces.
The Role of Ultrasonic Waves in Contamination Removal:
Even the most complex parts and surfaces may be efficiently loosened and have particles, oils, and greases removed due to the ultrasonic waves’ rapid pressure fluctuations in the liquid that cause high-energy bubbles to burst.
Ultrasonic Cleaning Mechanism
Application and Limitations:
- Applications: Perfect for areas where other cleaning techniques can struggle, such as complicated features, delicate components, and complex geometries. Frequently employed to clean delicate instruments, electronics, and small parts with accuracy.
- Limitations: Inappropriate for all materials due to the potential for damage to softer metals or delicate coatings from extended exposure to ultrasonic energy.
Plasma Cleaning:
Ionized gas (plasma) is used in plasma cleaning to extract organic pollutants from surfaces at the molecular level. Even the most stubborn stains are successfully removed by this dry cleaning method.
The Mechanism:
A gas, usually oxygen or argon, is excited to create a plasma state that includes ions, electrons, and reactive species in plasma cleaning. Contaminants are broken down into volatile chemicals by the plasma reaction, which the vacuum system removes.
Advantage:
- Superior Cleaning Precision: Plasma cleaning can reach small regions that conventional technologies are unable to adequately clean, resulting in cleaner, more precise results no residue is left behind because the pollutants are entirely converted into gases.
- Material Compatibility: It works well with many different kinds of materials, such as delicate electronics and optical parts.
Disadvantage:
- Cost: Specialized equipment is needed for plasma cleaning systems, they are typically more expensive than regular cleaning techniques.
- Efficiency: Using this procedure for large-scale cleaning tasks is limited because it can be slower and necessitate a regulated atmosphere.
Electropolishing:
Metal parts, such as those used in vacuum chambers, can have their surface quality improved using the highly efficient electrochemical cleaning and polishing technique known as electropolishing.
By using this technique, tiny layers of metal are removed, flattening the surface and getting rid of impurities like oxides, embedded particles, and surface flaws. For electropolished components to truly benefit, they must be baked well—ideally at 450 degrees Celsius—to completely outgas the surface.
3: Best Practices for Cleaning and Degreasing
Following appropriate methods can reduce the possibility of residual contaminants having an impact on the surrounding environment and assist in producing consistent and dependable outcomes. The essential procedures and factors to be taken into account while planning, carrying out, and confirming the cleaning and degreasing of vacuum chambers are described in this section.
1. Preparation Steps:
Selecting the optimal cleaning and degreasing procedure essentially involves a few steps. The following actions need to be taken in the preparatory steps.
Inspection of the Chamber for Visible Contaminants:
Check the vacuum chamber properly, looking for any obvious indicators of contamination such as dust, oils, residues, or corrosion. To fully inspect every surface, including nooks and difficult-to-reach places, use powerful light and magnification equipment as needed.
Disassembly of Components:
Disassemble detachable parts including flanges, seals, and internal fixtures to enable a more complete cleaning procedure. This stage guarantees thorough cleaning of concealed places, which are frequently hotspots for the buildup of contaminants.
2. Process Control:
Achieving reliable and reproducible outcomes requires tight control over the cleaning and degreasing procedures. In process control temperature, time, and chemical concentrations are important variables.
Maintaining Consistent Cleaning Parameters:
Create and follow uniform cleaning procedures. This involves determining the ideal cleaning agent concentration, cleaning time, and temperature (whether it be solvents, detergents, or other chemicals). To keep the process conditions within the authorized ranges, monitor and regulate these parameters using calibrated equipment. Deviations may result in damaged components or inadequate cleaning.
Constant Inspection and Modification of Cleaning Agents:
Keep a regular check on the cleaning products’ efficacy. Establish a regular plan for testing cleaning solutions, modifying their concentration, and replacing them completely if they become excessively polluted. When modifications are required, use indicators or analytical techniques like pH testing or concentration measurement.
3. Post-Cleaning Inspection:
It is imperative to confirm that the chamber and all of its parts are clean before reassembling and using them after the cleaning and degreasing procedures.
Techniques to Ensure Cleanliness:
Visual Examination:
Make sure there are no apparent pollutants left by carefully examining all surfaces and parts Visually.
Surface Testing:
To find undetectable residues, use surface testing techniques such as wipe tests, water break tests, or surface energy measurements. More sophisticated methods, such as mass spectrometry, gas chromatography, or contact angle measurements, may be employed for crucial applications to verify the lack of organic impurities.
4: Challenges and Solutions in Cleaning and Degreasing
Vacuum chambers can be difficult to clean and degrease, especially when working with fragile parts, tenacious impurities, and safety and environmental issues. Adherence to safety and environmental norms, appropriate procedures, and meticulous planning are necessary for efficiently tackling these difficulties. A closer examination of these issues and some workable remedies are provided below.
Challenges:
● Handling Delicate Components:
Vacuum chambers frequently contain sensitive items that are susceptible to rigorous cleaning techniques, including sensors, thin films, electronic components, and precise instruments. While strong chemicals can corrode or change the characteristics of delicate materials, mechanical cleaning techniques like abrasive blasting can harm delicate surfaces.
● Dealing with Stubborn Contaminants
It can be challenging to remove stubborn impurities like oxides, heavy greases, and baked-on residues with conventional cleaning methods. More forceful cleaning techniques might be necessary to remove these impurities, which could endanger the chamber or its parts.
● Environmental and Safety Concerns
Many cleaning and degreasing procedures include chemicals and solvents that can be detrimental to the environment and public health due to their flammability, toxic emissions, and ability to produce hazardous waste.
Solutions:
● Sensitive cleaning techniques:
Prevent damage to delicate components by employing sensitive cleaning methods, such as ultrasonic cleaning or soft brushing with non-abrasive substances.
● Protective Coating:
When cleaning delicate areas, temporarily cover or coat them with protective materials. This can assist in protecting fragile parts from unintentional contact with harsh cleaning agents.
● Specialized Cleaning Products:
Make sure the cleaning products you use are safe for fragile materials. For example, use mild organic solvents or aqueous solutions with a neutral pH that won’t react negatively with the component material.
● Targeted Chemical Cleaning:
Use specific chemical cleaning solutions made to tackle difficult residues; for oxides, use acidic or alkaline solutions; for heavy greases, use powerful organic solvents. Make that these substances adhere to the correct safety precautions and are compatible with the materials used in the chamber.
● Plasma Cleaning:
When it comes to molecularly eliminating persistent organic contaminants, plasma cleaning is highly effective. As it offers full cleaning without the use of harsh chemicals, it is appropriate for applications involving precision components and those that cannot tolerate chemical residues.
● Utilization of Eco-Friendly Products:
Select cleaning products that are less harmful to the environment and biodegradable, including low-toxicity aqueous solutions or biodegradable solvents. These choices are safer for users and have less of an impact on the environment.
● Automating Processes:
Reduce human exposure to hazardous materials by automating cleaning procedures whenever possible. Reduced risk and consistent cleaning parameters can be maintained by automated cleaning systems
5: Advancements and Innovations
The cleaning and degreasing of vacuum chambers is a constantly evolving process driven by technological advancements, resulting in new techniques and technologies that enhance efficiency, efficacy, and safety. These developments not only solve current issues but also open the door for new developments that may completely alter vacuum chamber maintenance in the future.
1. Cryogenic Cleaning:
Solid CO2 pellets are accelerated in an air stream during cryogenic cleaning to clean surfaces, also known as dry ice blasting. Upon touch, the pellets sublimate, eliminating impurities without the need for solvents or water. It may be used on delicate equipment without running the danger of abrasion and is good at removing stubborn residues including oils, greases, and adhesives.
2. Supercritical Carbon Dioxide Cleaning:
Supercritical CO2 cleaning dissolves and eliminates impurities by using CO2 in its supercritical form, a phase in which it possesses characteristics of both a liquid and a gas.
This technique is perfect for intricate pieces since it is quite effective at getting into small areas and complicated geometries.
3. Nanotechnology-Based Enhanced Cleaning:
With the creation of nanomaterials that can boost cleaning chemicals’ efficacy or give surfaces self-cleaning qualities, the application of nanotechnology is anticipated to improve cleaning techniques.
4. Technologies for Hybrid Cleaning:
Integrating several cleaning techniques into one hybrid system is becoming more and more common. For instance, combining laser cleaning with cryogenic techniques or ultrasonic cleaning with plasma treatment can offer comprehensive solutions that handle a greater spectrum of pollutants and cleaning difficulties.
5. Eco-Friendly Cleaning Products:
Creating environmentally friendly cleaning products and methods that lessen their influence on the environment is becoming more and more important. Future developments are probably going to concentrate on water-based solutions, biodegradable solvents, and other environmentally friendly technologies that reduce the usage of dangerous chemicals.
Conclusion
Vacuum chamber cleaning and degreasing are crucial for preserving peak efficiency by removing impurities. Technological innovations such as cryogenic techniques, plasma cleaning, and laser cleaning provide safe, secure, and eco-friendly alternatives. Adopting these advances along with future developments in automation and green technologies would guarantee better upkeep, more efficiency, and higher standards of cleanliness in key applications.
Can you improve your cleaning procedures to the highest standards by investigating innovative methods like automation, cryogenic techniques, and laser cleaning? How are you going to adjust to make sure your essential applications get the best results? Let us know by commenting below. If you have any queries don’t hesitate to leave a comment.
