Understanding the Difference Between a Fillet and Chamfer

Understanding the Difference Between a Fillet and Chamfer

Fillet-Machining-1

Table of Content

Introduction

The difference between a fillet and a chamfer is that a fillet is a rounded corner or edge, whereas a chamfer is an angled edge where two surfaces meet. Both are utilized to give products a smooth and complete appearance around their edges. The design of chamfers and fillets are crucial components in the production, assembly, and utilization of parts. Both stress concentration reduction and cosmetic improvement are potential benefits of some design aspects that might be incorporated into your item.

However, chamfer and fillet are not interchangeable terms in any way. There are numerous distinctions between the two. The chamfer is typically simpler to build and enhances the allowance of mating parts at the same time. The fillet manufacturing process is more expensive, but the finished product is typically safer and more durable.

Fillet Machining-1

What is a Fillet?

In mechanical engineering, a fillet is the rounding of a part design’s internal or external corner. When on an inner corner, a line with a concave function is used, and when on an exterior corner, a line with a convex function is used. Joints that are brazed, soldered, or welded frequently contain fillets.

In the production of mechanical parts, filters are essential. The stress concentration of mechanical parts can be decreased by using fillets on places and lines where considerable stress is anticipated. By dispersing stress across a broader area, the fillets efficiently boost the parts’ strength and load-bearing capacity. Additionally, machinists frequently employ fillets to remove sharp edges that can hurt you when handling parts or are prone to damage.

What is a Chamfer?

A chamfer is an angled or beveled interior or external corner. Using a chamfer keeps the edges from deteriorating and makes uneven edges appear more consistent. Because it concentrates the mechanical stress in a particular area, machinists often add chamfering at corners that require high-stress concentration. The assembly of mechanical engineering designs, furniture, woodwork, concrete formwork, mirrors, and machining all frequently use chamfers.

The typical angle for chamfers is 45° or 60° from the horizontal. When the chamfer is at a 45° angle to the horizontal, it is frequently used to remove the burr from drilling operations. Additionally, it enables the screw or bolt head to rest below the surface rather than jutting out. Typically, a screw or bolt lead-in uses a 60° chamfer. Because of their sharp corners, chamfers are less effective than fillets at reducing stress concentrations.

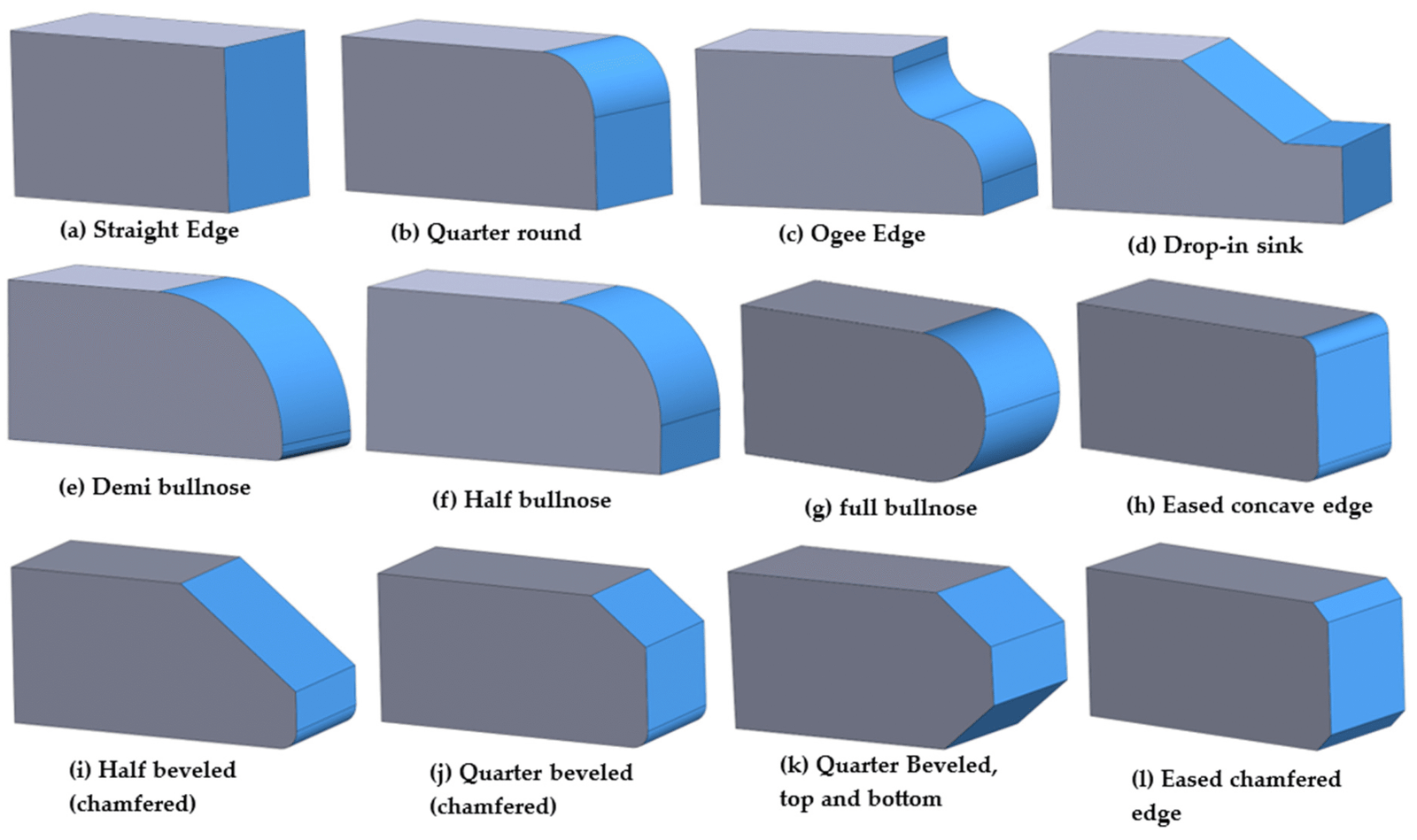

What are the Chamfered Edges?

An angled, sloping, or another sort of bevel is known as a chamfer. In mechanical engineering, chamfer can be divided into two categories:

– Use a 45-degree chamfer to remove bur during drilling operations. The chamfers enable a bolt to sit flush with the fir surface instead of protruding.

– Chamfers with 60-degree angles have sharp corners and are less helpful in lowering tension and improving attention. As a lead-in before a bolt and screw, they use. Making a furrow, groove, or bevel requires chamfering after the parts are finished.

Chamfer Edge Machining-2

When Do You Need a Fillet or Chamfer?

Choosing between chamfer molding and a fillet mechanic can improve part efficiency and be more economical. It would be ideal to make a decision based on your design and manufacturing ability; otherwise, a poor choice could increase your costs and shorten the part’s service life.

You ought to know when to employ fillets in Solidworks and how to apply chamfers effectively. Therefore, let’s go over the entire topic regarding fillet requirements and chamfers.

  1. A chamfer can be used for a hole where screws or bolts need to be driven. The sharp chamfered edge can be helpful for easy pin insertion and movement. Therefore, using a chamfer on a hole or around the hole’s edge is a wise choice. The smoother pin movement of a screw or bolt can be stopped by a fillet.
  2. Making a choice between a chamfer and a fillet with edges can be problematic in the field of fillet engineering. It is essential to eliminate all sharp edges because they are dangerous to use and can harm their users.
  • Both the chamfer and the fillet can be used for outside edges. It relies on the demands and needs of the design. Sharp edges can be broken with simple chamfering, but it must be safe for your design. Injury risk can be lowered by breaking sharp edges.
  • Over a part’s edges, a fillet tool works best. It is appropriate for developing exterior parts that require a beautiful effect. Remember how much better designs may be created by using a higher-level radius. Increased radius fillets can be helpful in relieving stress.
  • Sharp internal corners are difficult to produce when CNC milling items because the material is removed by a spinning tool. This tool leaves a radius when turning at corners, allowing you to employ a fillet inside vertical edges. In machining processes, it’s a good idea to have internal edges with a larger radius than the cutting tool.
  • When discussing what chamfered corners and edges are? Depending on the needs of the design, chamfered surfaces, holes, and edges can be used. Simple chamfering can soften harsh edges, but be sure the exterior of your design is not crucial. The definition of chamfering operation states that it is a standard machining procedure.
  • You must remember how 3-axis machines may machine counters on sloped and inclined surfaces. For your product to look more aesthetically pleasing, 3D machining suggests angular surfaces, and you require fillets all around the edges.

How is the fillet radius determined? Making this choice is crucial while designing. The fillet radius definition states that a large radius may cause minor issues. Therefore, you must take this into account while selecting a round fillet.

Differences between Fillet and Chamfer

The following are some key distinctions between a fillet and a chamfer:

  1. To produce varying fillet radii, a precise size of tooling is required. On the other hand, no specific tooling size is needed for chamfering, and one tool size will be adequate for producing various chamfer sizes.
  • Fillets are more expensive than chamfers when the machining process’s production costs are considered. So, it turns out that part fabrication is more expensive.
  • Because they don’t have sharp edges, fillets are safe to use. Chamfers must be handled carefully in any operation due to their sharp edges.
  • Fillets are a wise choice for the outer sections since they have a better stress flow, can distribute stress over a wide radius, and protect from deforming. Chamfers can cause material deformation because they have lower stress concentrations.
  • Compared to chamfer engineering, the machining time required for filter engineering is longer. Making fillet edges and corners is difficult and takes more time and effort.
  • The curved edges of fillets make them more time-consuming and difficult to produce. Forging and casting are simple procedures for producing fillets, and the chamfer is a quick technique that doesn’t take much machining time.
Fillet Manufacturing-3

Why Design Fillets and Chamfers for the Parts?

In several places, chamfer and fillet patterns are prevalent. Designing chamfers and fillets for items is typically done for aesthetic, process, and safety reasons.

Provide Safety

The corners of machined items are frequently exceedingly sharp. In order to prevent scratches, burrs and sharp corners are frequently removed using chamfer and fillet. The machinists use chamfer and fillet to relieve the stress on the part’s tip, which also lessens product damage brought on by bumps.

Process Requirement

Due to process requirements, some items must be constructed with the proper chamfers and fillets. Assembly is made easier by designing chamfers into shaft-hole mating pieces. Applying chamfers to the gear’s tooth top can stop the top of the tooth from warping due to heat treatment deformation. Additionally, the part structure’s corners are chamfered or filled to help with uniform pressure, quick demolding, and fluid circulation in the mold.

Decorative Purpose

The decorative effect of chamfers and fillets is also present, and the section is friendlier and more beautiful because of the fillet design. The sensitive nature of the component process can be reflected in the harsh and delicate “line” created when the chamfering radius is small.

How to Save Costs for Your Fillets and Chamfers?

Despite being aesthetically beautiful and easy to design, chamfers and fillets can increase the time and money it takes to machine a part. How can we cut back on the chamfering and filleting expenses?

Avoid Tight Tolerances if Possible

The cost of the part will increase with the degree of tolerance. A greater frequency of chamfer inspection is necessary for tighter tolerances, and prices will go up as a result.

Consider Part Production Volume

The cost per part is already high if only a small number of parts are produced. Then adding a chamfer or fillet design is not economically viable. However, the cost per part does not significantly rise in mass production. In this situation, adding chamfers or fillets is economically advantageous. High-volume components can be produced using casting or forging techniques, and pieces with fillets are economical.

Parts with fillets-4

Factors to Consider When Choosing Between a Fillet and Chamfer

The following information will assist you in selecting fillets and chamfers for your part design.

Stress Concentration and Safety

The fillet’s transition area is smooth, devoid of edges and points of any kind. A bevel is made by chamfering. No matter how the slope angle shifts, the portion outline and both sides of the bevel will produce crisp corners. These corners are not sharp; they are obtuse. As a result, fillets are better suited to decreasing stress concentration than chamfers, and rounded corners offer better protection than chamfered ones.

Part Assembly

The chamfer frequently serves as a lead-in for simple assembly, but interference must be avoided. As an illustration, consider the fillet and chamfer in the picture below. The external chamfer must be larger than the inner fillet and inner chamfer to ensure that there will be no interference when they are joined together.

The external fillet must be larger than the inner fillet and inner chamfer when combined with the inner fillet and inner chamfer.

Machining Efficiency

Cutting, grinding, and other processing techniques can be used in machining to finish the filter and chamfer. However, chamfers are easier to process than fillets and have a more extensive processing range. An illustration of how to prepare a shaft part. The chamfer can be cut using a standard turning tool when utilizing a standard lathe. But a unique shaping tool is needed to machine the fillet. On the other hand, chamfers can be machined more effectively using CNC machining tools than fillets.

Economy and Cost

The chamfer is superior to the fillet in terms of economy. The chamfer is preferred for the part’s outside surface and plane when there are no particular requirements. Due to the tool’s usage of the side-edge cutting technique, the inner cavity’s side wall should ideally be filled as much as feasible. The device would then turn at corners while departing from the radius. Auxiliary processing tools like EDM are needed if the side wall of the inner cavity is processed into a chamfer. In this scenario, expensive expenses will be incurred.

Prevent Rust

Parts are more prone to rust when inadequate coatings are present. Because the fillet design enables coatings and paints to be applied evenly, it prevents parts from rapid corrosion. Because the chamfer has a sharp edge, it decreases coating thickness. Chamfers are often not advised for protective paints and varnishes.

Part Aesthetics

Engineers use chamfers and fillets to enhance the aesthetics of a part. The fillet or chamfer is selected depending on the part’s aesthetic needs. Fillets are favored over chamfers in industrial design because they enhance the aesthetics of the final product.

Manufacturing Process

Consider the following factors when adding fillets or chamfers during part manufacture.

It is straightforward to add a fillet that is parallel to the machining axis. On the other side, a perpendicular fillet will increase the price of the part. As a result, it is advised to chamfer in a vertical direction to the machining axis.

Multiple sizes of chamfers can be created using a single tool. To build a different-sized radius, we must use a device that is particular to radii. A chamfer could need less machining time in a manual operation than a fillet. When used in casting and injection molding, filters can enhance material flow.

Hole Function

The purpose of a hole or slot influences the decision between fillets and chamfers. If the holes are utilized for bolts, screws, or pin insertion into the item, chamfers are a better option.

Chamfer Manufacturing-5

Conclusion

Fillets have lower stress concentration factors and can guard against deformation, while chamfers are more forgiving in chamfer mating components. Fillets have lower stress concentration factors and can protect against deformation. Therefore, it is very vital for you to have a solid understanding of the distinctions between chamfer definition engineering and fillet definition engineering for you to select the appropriate design and machining operation for your project. Examining the similarities and differences between chamfers, fillets, and bevels can result in higher-quality designs, more efficient and cost less.
