Vacuum chambers are crucial instruments used in a variety of scientific, industrial, and technological applications. These vacuum chamber sealers found in everything from research labs to production plants, let engineers and scientists analyze and work with materials in low-pressure situations.

Vacuum chamber design and operation offer numerous hurdles while developing these chambers. In this blog, we’ll look at what are challenges faced by engineers and scientists while creating and operating vacuum chambers. So, Let’s get started.

1. Vacuum Chamber Design Challenges

To ensure the appropriate operation and safety of a vacuum chamber, various issues must be addressed during design. The following are some of the main difficulties that engineers and designers frequently encounter when creating vacuum chamber designs:

Pressure Differential:

Vacuum chambers are made to retain a low pressure inside while being exposed to higher external air pressure. While the primary challenge is keeping the chamber structurally sound, preventing leaks, and maintaining a constant pressure difference. To solve this problem, engineers must take into account variables including material selection, joint sealing methods, and reinforcing processes.

Material choice:

Specialized alloys, stainless steel, and aluminum are frequently used materials in the construction of vacuum chambers. The material for the vacuum chamber must have high strength, good thermal conductivity, and minimal outgassing (the emission of gases from the material), the selection of a type of material is crucial. Engineers and scientists have to choose materials that work well under particular operating circumstances and vacuum pressures.

Structural Design:

Vacuum chambers must be structurally sound to sustain both internal vacuum forces and external pressures without bending or breaking. In order to provide structural stability and avoid collapse under vacuum conditions, engineers must take into account elements like wall thickness, geometrical shapes, reinforcement structures, and stress distribution.

Vacuum Seal:

Effective sealing techniques are necessary to maintain vacuum performance. Engineers must create and put into action dependable sealing solutions for the chamber’s access ports, windows, flanges, and other interfaces. The seals must be able to endure changes in temperature, pressure, and any motions or vibrations without affecting the integrity of the vacuum.

Temperature Control:

Vacuum chambers may be subjected to extremely high or low temperatures, including cryogenic conditions. To obtain the appropriate temperature range while preserving vacuum integrity, engineers must take into account thermal insulation, cooling or heating systems, and temperature distribution within the chamber.

Vacuum Access and Maintenance:

Vacuum chambers frequently need access for sample handling, equipment installation, and maintenance. Engineers have to incorporate appropriate mechanisms and access points into the architecture of the chamber to allow for practical and secure operations without ruining the vacuum integrity.

Contamination and Outgassing:

Outgassing is the term used to describe the release of gases and vapors from the interior surfaces of the chamber, which might pollute the vacuum environment or interfere with delicate equipment. To reduce outgassing and contamination issues, engineers must carefully choose and treat the chamber’s inner surfaces. In overcoming this obstacle, surface coatings, cleaning techniques, and material compatibility are crucial.

Material Selection and Compatibility

 Vacuum level, temperature, pressure, outgassing, and compatibility with the operation or experiment being undertaken are important considerations when choosing materials for vacuum chambers. Considerations for certain frequently used materials’ compatibility are listed below:

1

Stainless steel:

Due to its great strength, strong corrosion resistance, and minimal outgassing, stainless steel, especially grades 304 and 316, is a common material for vacuum chambers. The majority of routine operations can be used with it, and it can tolerate high temperatures and vacuum pressures.

Aluminum:

 Aluminum is useful for some applications because it is lightweight and has good thermal conductivity. It may, however, react with some gases or chemicals and have higher outgassing rates than stainless steel. The aluminum surface can be coated or anodized to assist solve these problems.

Titanium:

Titanium has a low outgassing potential and good corrosion resistance. It can endure high temperatures and is frequently used in high-vacuum systems. Titanium, however, can be costly and difficult to process.

Glass:

Borosilicate glass, like Pyrex, is appropriate for lower temperatures and vacuums. It is chemically inert and has great visibility. It might not be as strong as metal components, thus care must be taken to prevent thermal stress or unexpected pressure fluctuations.

Ceramics:

Alumina (aluminum oxide) and zirconia are two types of ceramics that can be utilized in vacuum chambers. Ceramics have little outgassing, great chemical resistance, and high thermal resistance. They could be fragile and have reduced mechanical strength.

Elastomers:

Gaskets or O-rings constructed of elastomers like Viton, Buna-N, or silicone may be necessary for some vacuum chambers. These materials can offer a dependable sealant, but it is important to confirm that they are compatible with the process gases, vacuum pressures, and temperatures.

Structural Integrity

To provide a secure and dependable environment for carrying out experiments or industrial activities under a vacuum, a vacuum chamber’s structural integrity must be guaranteed. The following are some essential factors to keep structural integrity:

2

Material Selection:

Materials should be chosen with the vacuum conditions and any other application-specific criteria in mind. Stainless steel, aluminum, and high-strength alloys are often utilized materials in vacuum chamber construction.

Pressure Rating:

Determine the maximum pressure difference that the chamber must be able to endure using the pressure ratings. To offer a safety margin, the chamber should be built and designed to handle pressures that are significantly higher than the expected operating pressure. Take into account variables like the pressure inside, the pressure outside, and any potential pressure spikes while operating.

Welding and Sealing:

To ensure sturdy and leak-free seams, use high-quality welding processes. Electron beam welding (EBW) and tungsten inert gas (TIG) welding are two common welding techniques for vacuum chambers. Utilize the proper vacuum-compatible gaskets, O-rings, or metal seals to seal all holes, flanges, and connections.

Bracing and Reinforcement:

To increase the overall strength of the chamber, use structural reinforcements including ribs, stiffeners, and supports. Under vacuum pressure, these reinforcements can assist carry weights uniformly and guard against distortion or deformation.

Finite Element Analysis (FEA):

Use finite element analysis (FEA) simulations to examine how the chamber will behave structurally under various pressure and load circumstances. This study can aid in locating potential weak points or high-stress regions, enabling design optimization and modifications as necessary.

3- Finite Element Anaylsis

                                            Finite Element Anaylsis

Testing and Inspection:

To verify the vacuum chamber’s integrity, carry out thorough testing and inspections. Visual inspections, pressure testing, and helium leak detection are typical tests. Check the chamber frequently for leaks and any indications of deformation or tension.

Repair and maintenance:

Establish a routine maintenance plan to deal with any wear, corrosion, or damage that may develop over time. To maintain the structural integrity of the chamber, replace or promptly repair any damaged parts.

Size and Shape Limitations

Vacuum chambers come in a variety of sizes and shapes based on their intended use and the particular specifications of the experiment or procedure being carried out. But while creating a vacuum chamber, there are some restrictions and things to take into account:

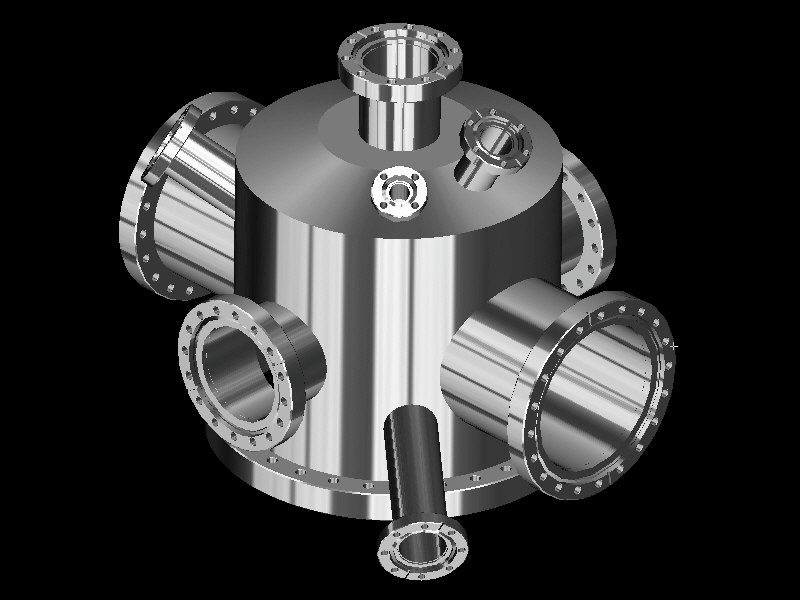

4- Different shapes of the circular vacuum chamber

                            Different shapes of the circular vacuum chamber

Size:

Vacuum chamber sizes may vary from tiny laboratory-scale chambers to huge industrial-scale chambers. The dimensions are normally decided by the size of the component or sample that will reside within the chamber and the necessary vacuum space volume. In contrast to smaller chambers, which are appropriate for studies with smaller samples, larger chambers can hold substantial equipment or even full complex parts.

Pressure Limitations:

Vacuum chambers are made to reach and keep a certain vacuum pressure level. Typically, Torr or Pascal units are used to express the pressure inside the chamber. From high vacuum (10-3 to 10-9 Torr) to ultra-high vacuum (below 10-9 Torr), the pressure range can change. The chamber’s size and shape may affect the pressure levels that can be achieved because larger chambers might need more pumping power to achieve and sustain lower pressures.

Material Strength:

 A vacuum chamber’s dimensions and shape must take the material’s structural integrity into consideration. The chamber’s construction material must be strong enough to endure the external atmospheric pressure that builds up against its walls when it is vacuumed.

Access and Ports:

Access points and ports should be included in the vacuum chamber’s design to allow the addition or removal of samples, the use of instruments, and the connection of auxiliary equipment. These entry points, which can take the shape of doors, flanges, ports, or feed-throughs, permit the entrance of wires, cables, or vacuum-sealed connectors while preserving the reliability of the vacuum atmosphere.

Material Compatibility:

The material for the vacuum chamber must be compatible with the particular vacuum conditions as well as the materials or substances being handled or tested, therefore choosing the right material is essential. The usage of materials like stainless steel, aluminum, glass, or specialized alloys is frequently dictated by characteristics like chemical resistance, thermal conductivity, and vacuum compatibility.

Shape Factors:

 The particular experimental or process requirements frequently dictate the vacuum chamber’s shape. Cylindrical, rectangular, or spherical chambers are typical shapes. The shape factor may have an impact on things like how electromagnetic fields are distributed inside the chamber, temperature gradients, or gas flow patterns. It’s critical to choose a form that will have the fewest negative consequences on the experiment or procedure being run.

Surface Finish and Cleanliness

To achieve optimum performance and prevent contamination, vacuum chambers must take the surface finish and cleanliness into account. Following are some specifics on each element:

5-Vacuum chamber cleanliness

                                              Vacuum chamber cleanliness

Surface Finish:

To reduce outgassing, enhance vacuum integrity, and make cleaning easier, the interior surfaces of a vacuum chamber should have a high-quality finish. In vacuum chambers, common surface treatments include:

a. Electropolishing:

 This method leaves the surface with a smooth, passivated finish after removing a thin layer of material. Surface impurities are removed, surface roughness is decreased, and corrosion resistance is improved via electropolishing.

b. Mechanical Polishing:

In mechanical polishing, the surface is smoothed and refined using abrasive materials. It improves the surface finish by removing flaws, burrs, and inconsistencies.

c. Chemical Passivation:

 Chemicals are used during the passivation processes to clean out impurities and form a shielding oxide layer on the surface. Passivation improves surface cleanliness and corrosion resistance.

d. Bead Blasting:

Bead blasting uses minute glass or ceramic beads to remove impurities and smooth out the surface.

2. Cleanliness:

A vacuum chamber must be kept clean in order to avoid degradation, maintain vacuum levels, and guarantee reliable results from tests. Following are some tips for cleanliness:

a. Particulate Contamination:

 Any particulate matter, such as dust, fibers, or debris, should be cleaned out of the chamber. Particulate contamination can ruin sensitive components, ruin experiments, and reduce vacuum quality.

b. Outgassing Contamination:

 It’s important to reduce chamber material outgassing. Vacuum environment contamination can result from the outgassing of volatile compounds from surfaces, which can deposit on other components. Surface treatments and material selection done properly might lessen this problem.

Flange and Feedthrough Compatibility

The design and operation of vacuum chambers depend heavily on flanges and feed-throughs. Let’s talk about how they work together and what to keep in mind.

Flanges: Flanges are the connecting elements used to assemble vacuum chamber parts. They give us a way to close the chamber and keep the desired vacuum. The American Standards Association, ISO, CF (ConFlat), KF (Klein Flange), and other types of flanges are only a few examples of the many types available. The needed vacuum level, chamber size, and application are only a few examples of the variables that affect flange selection.

The size and kind of the flange play a big role in compatibility. For instance, because of the differences in their geometries, ISO and CF flanges cannot be used together directly. But it is possible to connect flanges of various shapes and diameters using adapters.

Feedthroughs:

Without jeopardizing the integrity of the vacuum, feed-throughs are used to carry electrical signals, fluids, or other materials into or out of a vacuum chamber. Typically, they consist of a conductor that is hermetically sealed and penetrates the chamber surface. Electrical, fluid, optical, or even specialized feed-throughs for particular applications are just a few examples of the different uses for which feed-throughs can be constructed.

Feedthrough compatibility is influenced by their design, size, and sealing technique. For a suitable seal and to preserve the vacuum integrity, the feedthrough’s thickness and material should be compatible with the chamber wall’s. Companies specify details for their feed-throughs, such as the range of acceptable chamber wall thicknesses and sealing techniques.

It is crucial to take into account the following aspects when choosing flanges and feed-throughs for a vacuum chamber:

Types of flanges and feed-throughs: Depending upon these categories, such as ISO, CF, KF, or ASA, select flanges and feed-throughs that are appropriate.

Flange and feedthrough sizes: Sizes of the flanges and feed-throughs should be compatible with the dimensions of the chamber as well as with one another.

Vacuum specifications: Take into account the necessary vacuum level while choosing flanges and feed-throughs that will preserve the intended vacuum integrity.

Material of the vacuum chamber: Different materials might need different sealing techniques or require different compatibility concerns, which can affect the selection of flanges and feed-throughs.

6

Vacuum Chamber Operation Challenges

There are a number of technical and practical challenges that can arise when operating a vacuum chamber. Here are some typical difficulties with operating vacuum chambers:

A. Leak Detection and Maintenance

Vacuum chambers may face difficulties with leak identification and upkeep for a number of reasons:

Gaskets and Seals: Vacuum chambers often feature seals and gaskets that stop air or gas from reaching the chamber. These seals may deteriorate or create leaks over time, causing a vacuum loss. Inadequate installation or maintenance can also cause seals to malfunction.

Material Degradation: Materials used to build vacuum chambers have a tendency to deteriorate with time, particularly when subjected to harsh conditions like high temperatures or corrosive compounds. Leaks may result from fractures or holes caused by this deterioration in the chamber walls.

Vibration and mechanical stress: Leaks may result from vibrations or mechanical stress caused by machinery or procedures close to the vacuum chamber. Strong shocks or constant vibrations can degrade gaskets and seals, creating leakage spots.

Temperature and Pressure Cycling: Frequent changes in temperature and pressure may trigger materials to expand and contract, which can lead to the formation of leaks. It’s especially important for operations that involve abrupt fluctuations in temperature or frequent pressurization and depressurization of the chamber.

B. Pumping and Pressure Control

Operating a vacuum chamber presents significant hurdles in terms of pumping and pressure management. Let’s examine each of these difficulties in more detail:

Pumping Challenge: Pumping is the removal of gases from a chamber or the production of a vacuum therein. Achieving and sustaining the desired amount of Hoover is the biggest pumping problem. Up until the desired pressure is obtained, air and other gases are removed from the chamber. Typical pumping methods include:

a.Mechanical Pumps: These pumps remove gases from the chamber physically in order to create a vacuum. Examples of the mechanical mechanisms used in these pumps include rotating pistons or blades.

b. Diffusion Pumps: Diffusion pumps use vapor jets traveling at high speeds to accelerate gas molecules out of the chamber and lower pressure.

c. Cryogenic Pumps: These pumps produce a vacuum by condensing gases at very low temperatures.

Pressure Control Challenge:

Maintaining and managing the pressure inside the vacuum chamber is essential once the necessary vacuum level has been reached. This difficulty is a result of several factors:

a. Leakages:

Seals, couplings, or other parts of vacuum chambers may allow tiny leaks. These leaks could let outside air into the chamber, which would interfere with pressure regulation. To keep the pressure stable, leaks must be reduced and closely monitored.

b. Outgassing:

 Outgassing is the term for the release of gases that have been trapped within the materials, components, or walls of a chamber. In situations when delicate investigations call for extremely high vacuum levels, outgassing may result in an increase in chamber pressure.

c. Gas Flow Control:

Accurate control of gas flow rates and composition is necessary to maintain the proper pressure when a process inside the chamber includes adding or removing certain gases.

C. Thermal Management

Due to the lack of air or any other heat-transfer medium, thermal management in a vacuum chamber offers a number of difficulties. Some of the main difficulties in controlling the temperature in a vacuum chamber are listed below:

Temperature Uniformity:

 For many applications, achieving homogeneous temperature distribution inside the vacuum chamber is essential. The absence of air or other media, however, can cause temperature gradients to form, resulting in specific hot or cold regions. Creating a thermal management system that effectively maintains temperature consistency over the entire chamber is a difficult task.

Insulation:

To keep the chamber’s vacuum constant, it’s frequently necessary to protect against heat transfer from the environment with appropriate insulation. The heat dissipation inside the chamber, however, could be impacted by the thermal conductivity restrictions of insulating materials. Thermal management makes it difficult to strike a balance between efficient heat transport and adequate insulation.

Thermal Expansion and Stress:

Materials may expand or contract as a result of temperature fluctuations inside the vacuum chamber, which can result in thermal stress. The absence of external pressure can make these consequences of thermal stress worse because the chamber runs in a vacuum. To minimize the possible problems caused by thermal expansion and stress, it is important to choose materials with low thermal expansion coefficients and to take careful design considerations.

7-Opened Vacuum chamber

                                                 Opened Vacuum chamber

D. Safety and Human Factors

Vacuum chambers are specialized enclosures used to generate and sustain low-pressure environments in a variety of industries, including manufacturing, aerospace, and scientific research. Working with vacuum chambers necessitates careful attention to safety and human aspects in order to protect workers and avoid mishaps. There are some important factors to think about:

  1. Pressure hazard:

Vacuum chambers function at low pressures, which can be dangerous when not properly controlled. Excessive pressure differences between the chamber’s inside and exterior can cause explosions, implosions, and structural failure. As required by the manufacturer or engineering standards, make sure the chamber is built, operated, and planned within its pressure restrictions.

  • Leak prevention:

Vacuum chambers need to keep their environment at a constant vacuum. To stop leaks, appropriate sealing components like metal seals, O-rings, or gaskets should be utilized. The integrity of the chamber should be ensured by routine leak testing and maintenance.

  • Electrical Safety:

Electrical systems for instrumentation, temperature control, or power supply are frequently present in vacuum chambers. Electrical parts and wiring must adhere to the necessary regulations and be built to survive the Hoover environment. Use adequate grounding methods to reduce the risk of electrical discharge or shock.

Conclusion

Vacuum chamber sealers are used in ranging from research labs to manufacturing facilities. Engineers and scientists can examine and deal with materials in low-pressure settings due to these vacuum chamber sealers. The precise needs of the experiment, procedure, or application dictate the vacuum chamber’s size and shape.

Combining technical knowledge with an understanding of the requirements of the intended application, as well as knowledge of material science, is necessary to solve these design problems. Vacuum chamber performance is frequently improved by using iterative design techniques, simulation software, and testing. This blog was helpful for you? Do you have anything to share about this blog? Just let us know by commenting below.
