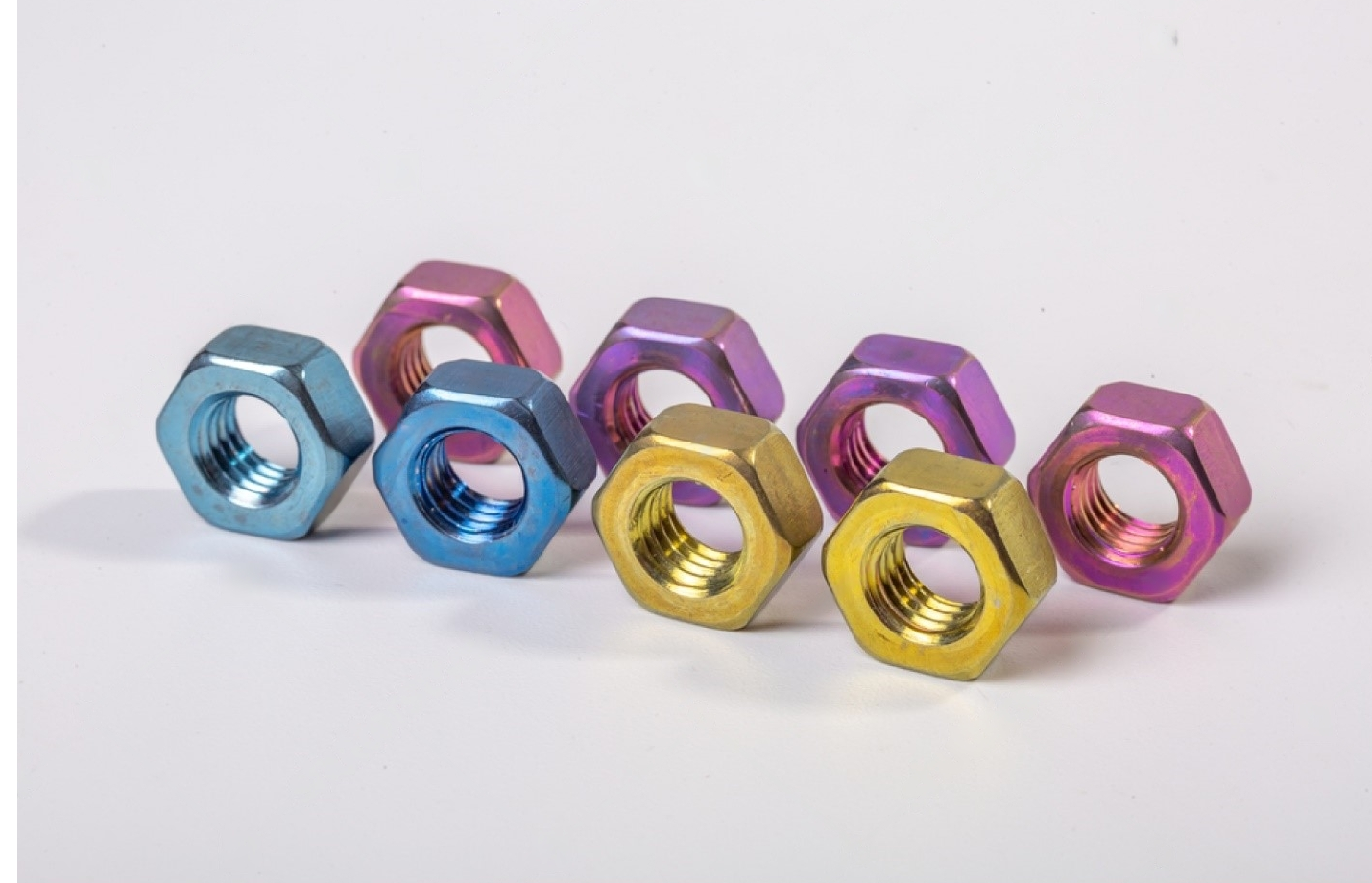

1-colored anodized bolts high strength metal fasteners

colored anodized bolts high strength metal fasteners (Reference)

Introduction

Titanium anodizing, an electrolytic finishing process powered by electric current, artfully modulates the oxide layer gracing the surface of the titanium. This transformative technique, aptly named “anodize” due to the titanium item’s role as the anode (positive electrode) within an electrolytic cell, boasts a rich history rooted in the aerospace sector. Its inaugural application in 1923 shielded British seaplane components from the corrosive clutches of saltwater. Today, aerospace titans still rely on anodizing processes to fend off the relentless forces of aging, wear, and corrosion. Beyond aviation, the medical device industry has harnessed the prowess of titanium anodizing, drawn to its nontoxic attributes and suitability for vital biomedical applications like orthopedic implants. This article embarks on an exploration of titanium anodizing’s diverse types, intricate mechanisms, requisite materials, durability, maintenance, and optimal practices, unveiling its enduring relevance across contemporary industries and the evolving landscapes of technological progress and challenges.

How Titanium Anodizing Works

To embark on this journey with small titanium components, crafting an electrochemical cell housing a DC power source and the right electrolyte is the initial step. Ensuring the bath serves as the cathode and the titanium part assumes the role of the anode, an electric current courses through the cell, gradually oxidizing the component’s surface. Precise control can be elusive, yet it yields visually gratifying results.

The odyssey commences with a rigorous cleaning regimen, purging the titanium surface of oils, grease, or contaminants that could thwart the anodizing process. Once pristine, the titanium embarks on an etching process. This entails creating a textured surface, fostering optimal adherence to the anodizing solution. The resulting rough surface forges a robust bond between titanium and the ensuing layers.

The prepared titanium then takes a dip in the anodizing solution, often composed of sulfuric acid, water, and specialized additives. As the anodizing process culminates, meticulous rinsing follows to banish any lingering solution.

Anodizing is an electrifying chemistry show, submerging the titanium part in an aqueous electrolyte solution. With electrical current coursing through, water molecules undergo hydrolysis, cleaving into hydrogen and oxygen. The electric potential compels oxygen to embrace the titanium surface, augmenting the thin titanium oxide layer. For color anodizing, the final hue rests on the thickness of the oxide layer, adjustable via voltage and immersion duration.

Types of Titanium Anodizing

Type 1 Titanium Anodizing

Type 1 anodized titanium, also known as commercial anodized titanium, is produced using a relatively simple process that leaves a thin oxide layer on the titanium’s surface that typically ranges in thickness from 0.5 to 2.5 micrometers. This technique comprises cleaning the titanium surface, submerging it in an electrolyte solution, and then briefly applying a low voltage. This anodized coating provides improved corrosion resistance despite its thin thickness. It has practical uses in addition to its usual ornamental ones. Type 1 anodizing can produce a semiconducting oxide layer, making it useful for pre-treatment prior to extrusion and for particular radiative or absorptive qualities, especially in thermal control applications. It is a flexible option for varied industrial needs because the end result often has a subdued silver or gray appearance.

Type 2 Titanium Anodizing

Type 2 anodized titanium distinguishes itself with a thicker and more controlled process than Type 1, yielding superior corrosion and abrasion resistance, along with increased hardness. Though it doesn’t offer the vibrant colors seen in Type 3 anodizing, it forms a distinctive gray layer, facilitating easy differentiation from steel. This type finds its niche in applications entailing mechanical stress and friction, as it produces thicker and tougher coatings that significantly bolster wear properties. Particularly crucial in contexts like orthopedic implants, Type 2 anodizing curbs the generation of undesirable titanium dust when untreated parts interact, ensuring smoother joint mobility and reduced friction. For aerospace applications, it meets AMS 2488 standards, providing resistance to extreme temperatures and corrosion from saltwater exposure. It’s the go-to choice for wear resistance, setting itself apart with its distinctive gray hue, although a final bead blasting step is required to achieve the characteristic finish.

2-middle screw has a Type 2 anodized titanium finish

middle screw has a Type 2 anodized titanium finish (Reference)

Type 3 Titanium Anodizing

3-Titanium color anodizing

Titanium color anodizing (Reference)

Type 3 titanium anodizing, often referred to as titanium color anodizing, finds widespread application in the medical field for its role in quick visual part identification. For instance, orthopedic surgeons can effortlessly request a specific-colored bone screw during surgery, streamlining procedures. In trauma fracture cases, bone fixation plates come equipped with differently colored drill guides to distinguish between left and right plates, aiding precision in orthopedic treatments. Although less common in aerospace, Type 3 anodizing occasionally assists with visual identification in intricate assemblies. Beyond these domains, Type 3 colored titanium coatings have found a niche in jewelry manufacturing.

In contrast to Type 2, Type 3 titanium color anodizing lacks a universal industry specification, posing color-matching challenges between batches. Manufacturers embarking on Type 3 anodizing must establish their own process validation from scratch, given the absence of industry standards. Type 3 anodizing forms a thicker and denser layer of titanium oxide compared to Types 1 and 2, offering a spectrum of colors by controlling the oxide layer’s thickness. Employing sulfuric acid as the electrolyte, this process is known for creating a thin, transparent oxide film with variable thickness, lending a range of vibrant hues to the titanium part’s appearance, making it an invaluable tool for industries requiring both precision and aesthetics.

Type 4 Titanium Anodizing

Polytetrafluoroethylene (PTFE), often known as Teflon, is injected into the titanium surface during type 4 anodizing to enhance it. Through this method, friction is greatly reduced, and wear resistance is improved. When eliminating friction and guaranteeing longevity are crucial considerations, this special treatment offers significant benefits.

Titanium Anodizing Materials and Equipment

You’ll want a special set of supplies and machinery made for this metal in order to anodize titanium. First and foremost, a dependable power source that can give 120 volts is necessary. Alternatively, ten 9-volt batteries might be linked in series to produce the required voltage. An adequate electrolyte is necessary for anodizing in order to proceed. Additionally, you’ll need a Whink rust stain remover, which is optional but may improve the finish’s longevity and is used to etch the titanium, tiny diameter titanium wire, alligator clamps for secure connections, and other materials. A piece of steel for the cathode, where hydrogen gas will be produced during anodization, and of course the titanium piece you want to anodize are required to complete the electrical circuit. In order to protect yourself from possible chemical exposure, don’t forget to put on the essential personal protective equipment (PPE), which should include gloves, safety goggles, and a lab coat or apron. Utilizing these supplies and tools will make it possible for you to anodize titanium in a reliable and secure manner.

Durability and Maintenance

The durability of anodized titanium is impressive, with the anodized surface remaining stable for years, as long as it’s shielded from abrasion and limited chemical attacks. Remarkably, titanium’s corrosion resistance extends to such an extent that it defies the norms of galvanic corrosion. Anodized titanium is not susceptible to rust, especially when a robust oxide film has formed, making it highly resilient to corrosion even under aggressive conditions. While anodization isn’t entirely permanent, it’s incredibly robust. Abrasion may cause some wear on hard-working parts, but complete removal of anodization from titanium is a rare occurrence, requiring concentrated nitric acid with traces of hydrofluoric acid and heat. In general, titanium anodizing proves to be a long-lasting and reliable choice, as components anodized decades ago remain nearly as good as new.

Best Practices

Following a set of best practices that concentrate on surface preparation, time, and surface finish can help you get the best results when anodizing titanium. Consistent coloring depends critically on surface preparation, also known as anodize prep. A thin layer of material must be removed in order to provide a homogenous surface that is suitable for color anodizing. The level of surface preparation needed depends on the grade of titanium; more aggressive preparation is needed for pure grades like grade 2 than for titanium alloys like grade 5.

In the process of anodizing, timing is crucial. After the anodize preparation, anodization should take place right away, ideally within a few hours. If the process is postponed for longer than 6–8 hours, the titanium’s natural oxide layer starts to form, resulting in unattractive splotchy color patterns.

Another important component that greatly affects how colors appear is the surface finish. Poor machining can result in surface areas that are work-hardened or smeared, which interfere with the electrical current during anodization and produce an uneven and discordant color. For instance, a titanium part can show blue with bronze dots or magenta with gold spots.

The brilliance of the final hue is also influenced by the titanium’s original surface finish. In contrast to Type 2 anodizing, which does not change the brilliance of the titanium’s surface finish, the titanium will preserve its matte appearance if the surface has been blasted before anodizing. Following these best practices guarantees that titanium anodizing procedures produce colors that are vivid, uniform, and aesthetically pleasing.

Conclusion

Finally, titanium anodizing is a flexible technique with applications in a variety of fields, including medical, aerospace, and jewelry production. Numerous brilliant hues may be produced by adjusting the oxide layer on titanium surfaces. Results that are consistent and pleasing depend on surface preparation, time, and surface finish. Anodized titanium is still a desirable option for many specialized applications because of its strength and corrosion resistance.
